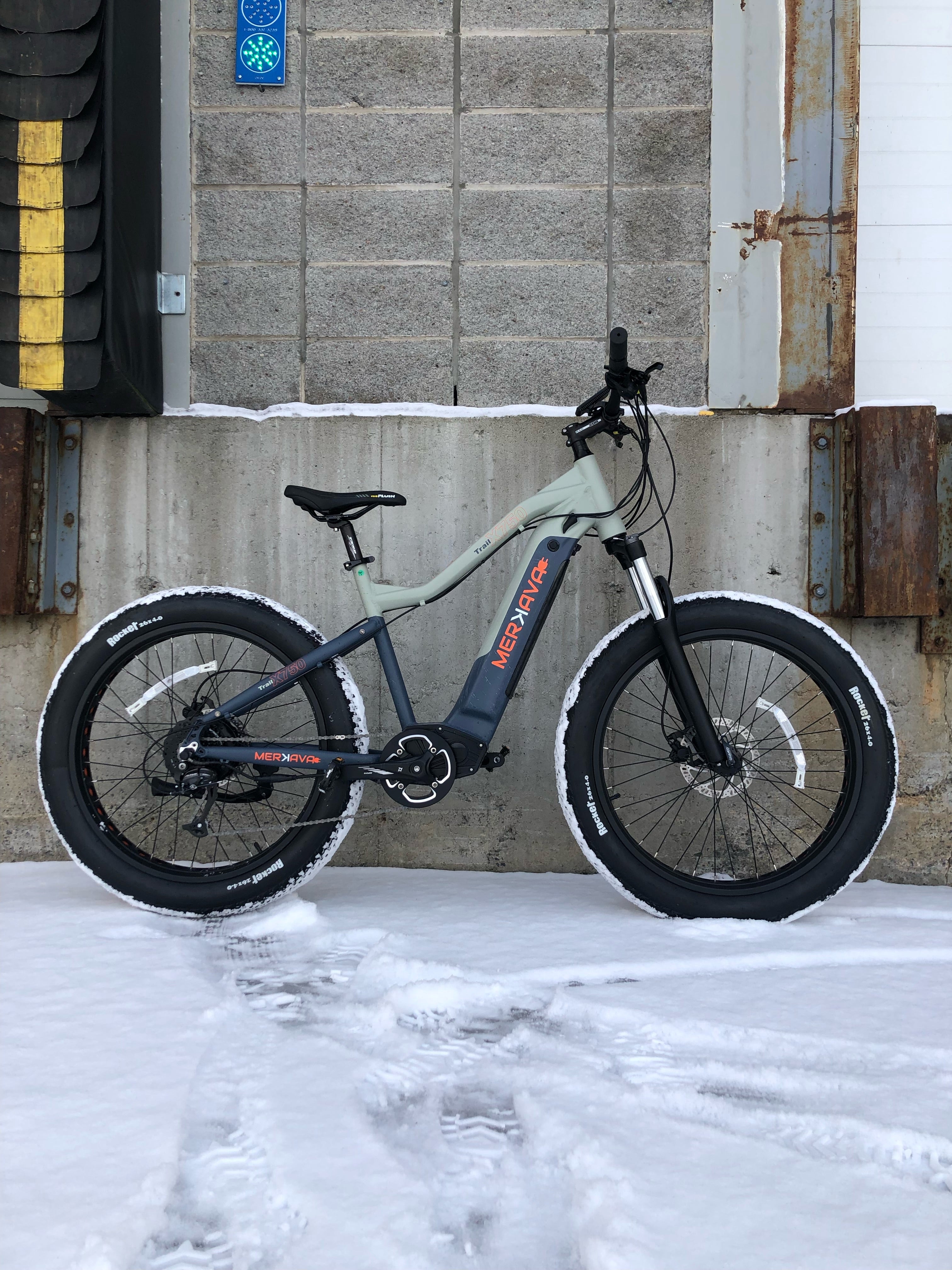

The new TrailX750 electric mountain bike seamlessly blends rugged capabilities and exceptional comfort. With 26’’ x 4” fat tires for added grip and stability, this eBike is perfect for off-road adventures, weekend spins around the block, and everything in between.
Explore you local trails
in the winter and your local beach in the summer. The TrailX750 eBike makes riding on Snow or Sand enjoyable and effortless.
With 750W and 80 nm
of max torque at your disposal, this Bafang brushless hub motor is going to power you up inclines and get you up to top speeds quickly, all while remaining quiet and inconspicuous.
Performance unrivalled
even by the most expensive mid drive systems out there, so prepare to outperform and outclass everyone you see on the road.
Good looks and functionality is what this electric bicycle is all about with its concealed motor and battery pack.
Powered by Samsung.
Integrated into the frame and easily removable battery pack allows you to charge the battery while in or out of the bike. You may also carry an optional second battery pack for your extra long rides.
The Shimano Altus
9 gear derailleur will allow you to determine how much effort you want to put in if you do decide to pedal. Break a sweat or not, it’s entirely up to you.
The Tektro Hydraulic Disc brakes
will bring your powerful electric bike to a full stop safely and effortlessly.
The Intelligent LCD
display will help you keep stats on all the key metrics at a glance.
Go out, Exercise and Explore
(more) with your new TrailX750 fat tire electric bike at your disposal.
Adjustable and Lockable front suspension and fat tires for added comfort on rough terrain.
Just because the weather's changing doesn't mean you should stop riding!
Pedal Only, Pedal Assist With Various Levels, Throttle Only
Hill Climb
Up To 15% Grade
Tires Size
26’’ X 4’’ Kenda Fat Tires
Wheel Type
26’’ Double Wall With 13G S.Steel Black Spokes. Quick Release Front Wheel
Lights
LED Front And Rear Light
Brake
Front: Tektro Hydraulic Disc Brakes (HD-E350)
Rear: Tektro Hydraulic Disc Brakes (HD-E350)
Display
Yes, Intelligent Big Stone LCD Display Showing Battery Life, Speed And More
Derailleur
Shimano Altus 9 Gear Derailleur
Chain Wheel
ProWheel Al-Alloy Crank Set And KMC Z99 Chain
Adjustable Seat
Yes
Handle Bar
AL-ALLOY 680mm With Threadless Stem In Sand Black
Saddle
Black Velo Padded Seat With Alloy Post And Quick Release Clamp
USB Charging Port
No
Color
Grey And White With Orange Accents
Body
26’’ Alloy, TIG Welded.
Front/Rear Forks
Aluminum Alloy
Net Weight
30kg (69lbs) Including Battery
Max Load
113kg (250lbs)
Front Shock Absorber
Yes, Crown Suspension With Hydraulic Adjustment
Rear Shock Absorber
No
Dimensions
* Total Width 68 In
* Total Height 40 In * Handlebar Width 26 In
Foldable
No
Foldable Dimensions
N/A
Certification
CE
*Max Speed And Range Based On A 175lbs Rider And Flat Surface.
Frequently Asked Questions
There is very minimal assembly required, including mounting the handlebar, placing the front wheel in place (with quick release latch) and inflating the tires. Make sure to fully charge your battery before your first ride, check and tighten all bolts and screws if necessary and read and understand the owners-manual and safety labels. If you are unclear about anything we strongly urge you to send us an email or request a call back so we can guide you through any issue you may be experiencing.
Yes, as with any two wheel chain and sprocket configuration the chain must be kept clean of dust and debris and well oiled to increase its life span and performance.
TrailX750 is recommended for riders 16 years of age and older.
You do not need a license, plates or insurance to operate the TrailX750. However, we encourage you to review your local rules and laws as each province or state has its own by laws. We strongly advise the use of safety equipment like helmets.
TrailX750 can be ridden on the road in most North American cities, on bike paths, trails and any other venues where regular pedal bikes would be permitted. It is always a good idea to review your local rules and laws as each province or state has its own by laws governing battery operated transporters.
For optimal performance max rider weight ideally shouldn’t exceed 113kgs or 250lbs. Note that performance, range and top speed will be affected with higher rider weight
Yes but riding in colder temperatures can affect the performance and battery range. Make sure your TrailX750 is always stored indoors.
Yes, TrailX750 is designed for use on paved roads, gravel, mud, sand or snow.
Simply wipe it down with a wet cloth. Aiming a hose or high pressure water gun onto sensitive parts of the bike will lead to damages not covered by the warranty.
Our e-Bikes ship from Montreal to all Canadian cities.
The TrailX750 uses rechargeable and removable SAMSUNG Lithium-ion battery packs. We have taken great care to ensure our battery packs are built to the highest standards of safety and performance
Trailx750 comes with a 2 year limited manufacturer’s warranty. Please see full details on our warranty and returns tab.
Merkava stands behind its products. All our transporters benefit from a 2 year limited warranty.
1. The COMPANY warrants that the frame will be free from defects in the materials and workmanship for a period of 2 years.
2. The COMPANY warrants that the motor and battery pack will be free from defects in the materials and workmanship for a period of 1 year*.
3. The COMPANY warrants that the electrical components including the controller and charger will be free from defects in the materials and workmanship for a period of 6 months.
4. Before shipping, we conduct spot checks on our transporters to validate overall quality and condition of electrical components including motor and battery pack. These checked units have their battery tested and fully charged before shipping.
5. The lithium ion technology we use is intended to last for several years while being charged and discharged several hundred times. However, the battery's life span will depend on your care of the battery.
6. Battery life will depend on your maintenance and care of the battery. We use advanced Lithium-Ion batteries and they should be charged at least once a month to ensure the longevity of your battery. Make sure to only use our supplied charger on your battery as well as a power bar to prevent surcharges.
7. Allow your battery to rest for 10 minutes after charging before riding and for 10 min after riding before charging. Unplug your battery charger after the light turns green indicating your battery is fully charged.
8. Caution: Do not expose your battery to water, humidity and extremely low or high temperatures to avoid potential damage to your battery.
9. If the PRODUCT proves defective AND a claim is filed during the warranty period, the COMPANY at its option, will: Repair the PRODUCT by means of telephone support, email support, or by providing the necessary parts at no charge.
Warranty claims must be filed with Merkava by email: info@merkava.ca
* Warranty on battery will be limited to 6 months if it is determined that our guidelines for proper battery care have not been followed.
The following are not covered by the warranty:
• Shipping to and from or drop off and pick up at our locations for repairs covered under the warranty.
• Wear and tear on frame, grip tape, levers, tubes, tires, brake discs, brake pads, cables, seats, plastic fairings, shocks or suspensions and any other component which wears out naturally during usage.
• Minor scratches and stress marks that may occur during shipping and handling.
•Water damage caused by exposing the bike and sensitive electrical parts to water such as washing transporter with hose or pressure washer.
• Accidents, misuse, abuse, human errors or lack of maintenance.
• Acts-of-god such as fire, flood, earthquake, freezing, etc
• Transfer of eBike ownership
• Damages caused by salt in winter conditions.
The following will void the warranty:
• The modification of your transporter or use outside those specified on this site.
• The serial number of the product has been altered or removed.
• The product has been dismantled and repaired/reassembled improperly or with aftermarket parts.
• Overloading your transporter.
• Storing your transporter outdoors.
Although trailx750 is technically a bicycle care should be taken when riding it or any other electric motor powered vehicle. You should treat your new transporter with respect, never underestimating it’s power potential. We advise that new riders always start on the lowest pedal assist mode until they are entirely at ease with the transporters acceleration, braking and maneuverability. This transporter has been built to provide you with years of fun commute, please keep your safety and that of others a priority.
Always use bicycle lanes where available. If none are available you must conform to all traffic laws that apply to other motor powered vehicles.
Helmet Always wear an ASTM and CPSC certified helmet when riding. Make sure that the chin strap is attached before your ride and follow the helmet manufactures instructions for proper use and fit. In many Provinces or States the wear of a helmet on e-bikes is mandatory.
Footwear Make sure to always wear shoes that have good traction on the pedals or pegs and will stay on your feet at higher speeds.
Brakes Squeeze the hand brake levers to ensure there is positive braking action before starting your ride. We recommend parking on flat surfaces. If however you must park on an incline, make sure to park your transporter perpendicular to the road with the back wheel leaning against the sidewalk, same as motorcycles.
Control Make sure you are sitting on your e-bike with your hands on the hand grips before engaging the throttle and keep hands on hand grips when riding. Beginners should always start on the lowest power assist mode until familiarized with the TrailX750.
TrailX750 Manual
ready to roll?
Big Tires with Low Footprint:
The TrailX750 fat tire eBike will allow you to explore more with little to no effort and absolutely no impact on the environment. This year ride green.
Going places
Commute or joy ride through your trails or beaches. Get there faster! No license, plates or insurance required. Adios to traffic, parking or long bus and subway wait times. Take control of your destination...every time.
Powered by a SAMSUNG battery pack:
The TrailX750 electric fat bike is powered by an Integrated. Concealed and Removable Samsung Lithium ion battery pack for aesthetics and convenience.
Charge anywhere
CHARGE ANYWHERE through any 110V power outlet at school, the office or home. Our light weight charger can easily be carried in your back pack so you are never left with an empty battery. Plug, Play and Repeat!
We are thrilled you are considering a Merkava vintage eBike, a Merkava fat tire enduro electric motocross, a Merkava electric scooter or a Merkava electric bicycle for your commuting needs or exciting trail rides.
We are committed to having you entirely satisfied with your purchase and will ensure this is an easy and pleasant experience for you.
Buy your new electric bike with total confidence and benefit from our 2 year limited warranty and our 14 Day Buy Back Guarantee.
